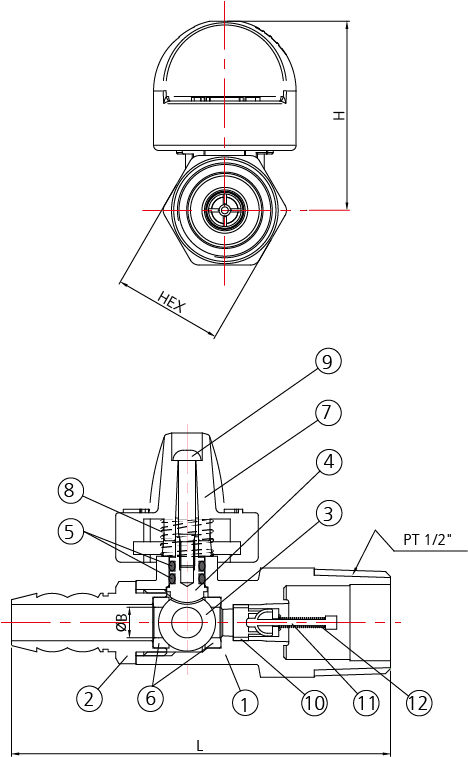

FLOW RATE

L

H

ØB

HEX

F 1.2

74.5

38

Ø6

F 2.5

NO

PART NAME

MATERIAL SPEC

1

                     BODY

                    C3771

2

                     SOCKET

                    C3771

3

                     BALL

                    C3771

4

                     STEM

                    C3604

5

                     O-RING

                    NBR

6

                     SEAT RING

                    PTFE

7

                     HANDLE

                    ALDC 12

8

                     HANDLE SPRING

                    STS 304

9

                     HANDLE SCREW

                    SWRM 8

10

                     PLUG BODY

                    POM

11

                     SEMI BALL

                    POM

12

                     FUSE SPRING

                    STS 304
